RiaCore

A desktop application for working with RIA graph data, built as a pnpm monorepo with TypeScript.

Main repository: github.com/cntSafety/RiaCore

Download

You do not need to build anything to try RiaCore. Prebuilt applications are published in the Releases section of the main repository:

Grab the package for your platform, start the app, and continue with Getting Started with Sample Data.

Screenshots

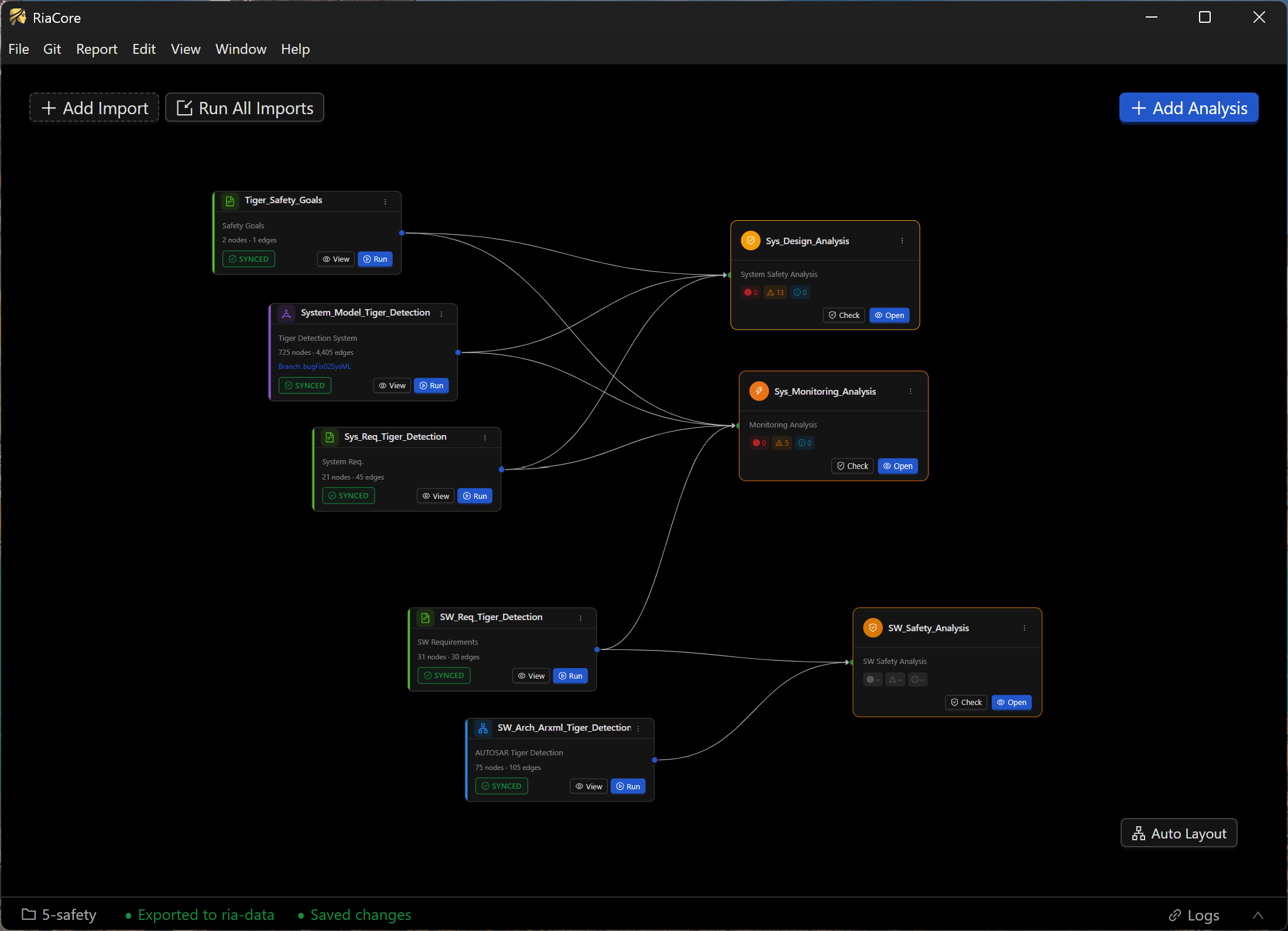

RiaCore desktop app — namespace tree and analysis view

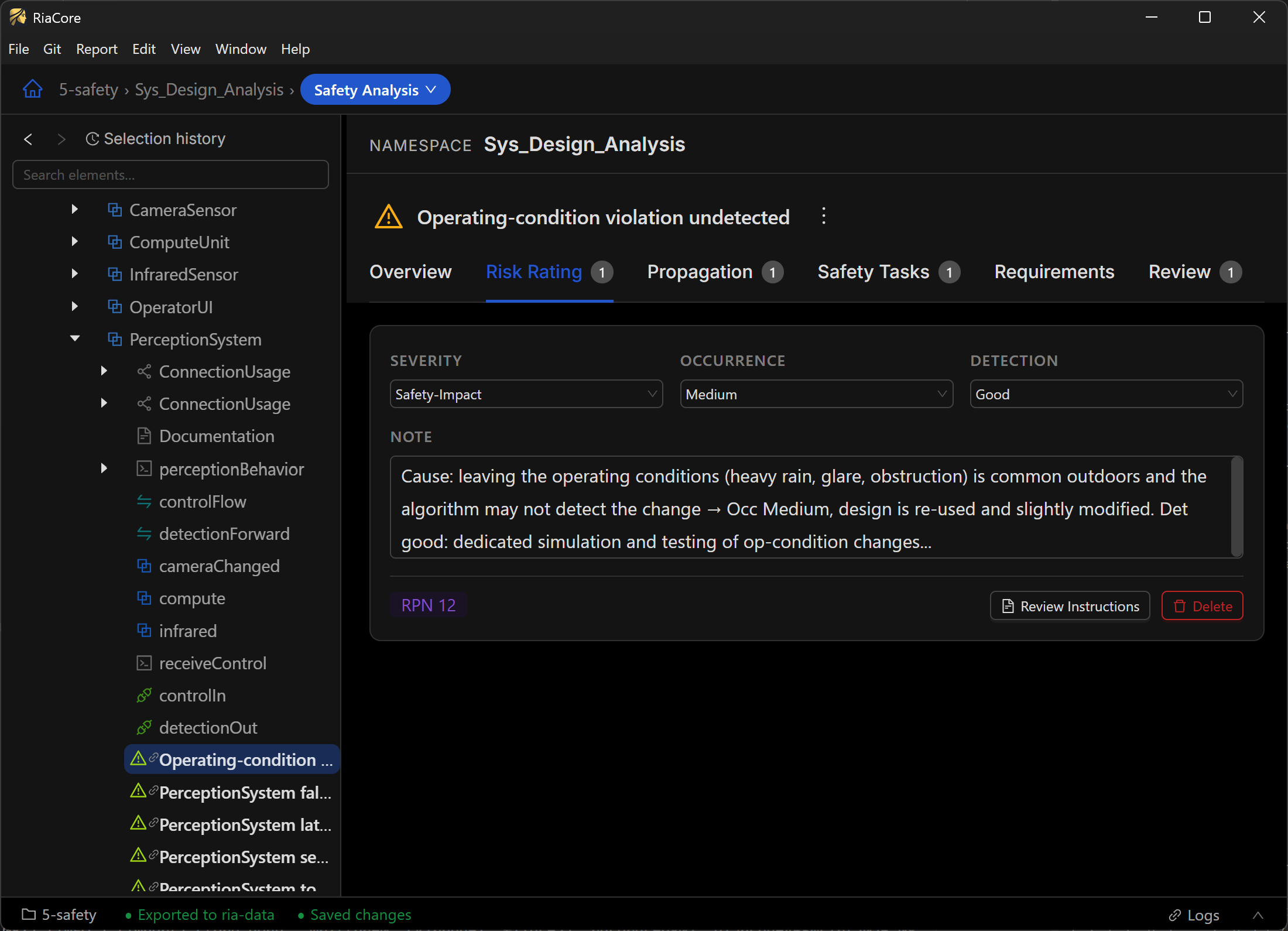

RiaCore desktop app — safety analysis working area

⚠️ Qualification notice

No tool qualification is provided with RiaCore. Before using it in any project, the qualification has to be performed according to that project’s specific requirements and the applicable safety standards — for example ISO 26262, IEC 61508, or others relevant to your domain. Deciding on the required qualification measures, performing them, and documenting the evidence remains the responsibility of the using project.

Getting Started with Sample Data

The fastest way to get something on screen is the reference project: github.com/cntSafety/ref-project.

It ships a ready-to-use workspace — importer configs, sample source data (ARXML, SysML, and more), and persisted ria-data — so you can open it directly in RiaCore instead of assembling a workspace and import configuration by hand.

git clone https://github.com/cntSafety/ref-project.git

Then point RiaCore at the cloned directory as its working directory and load the data from there.

Where data lives

For a given working directory:

⚠️ Keep the database and logs out of git. ria-data/ is the versioned artifact — the full graph state lives in those JSON files and can be restored into a fresh database at any time. The db/ directory is a regenerable binary cache, and logs are runtime noise; committing either bloats the repository and produces meaningless diffs. Add this to the .gitignore of your workspace repository:

# Logs
*.log
logs/

# Database files
db
db.wal
*.db
*.db.wal

Building from source (optional)

Only needed if you want to develop RiaCore or build your own packages. For normal use, take a prebuilt application from the Releases section instead.

Prerequisites

Setup

cd RiaCoreDev
pnpm install
pnpm build

⚠️ Git binary for packaging: The pnpm install step downloads a bundled git binary via the dugite package (used by @riacore/git-service). If the download fails (e.g. due to a corporate proxy or TLS certificate issue with error UNABLE_TO_GET_ISSUER_CERT_LOCALLY), the app will not work — both in packaged builds and during local development. To fix this, either set NODE_EXTRA_CA_CERTS to your corporate CA certificate before running pnpm install, or manually download the dugite-native release from GitHub and extract it into node_modules/.pnpm/dugite@2.7.1/node_modules/dugite/git/.

Run in development (Electron)

From the repo root, a single command starts both the Vite dev server and Electron:

cd RiaCoreDev
pnpm dev

This works on Windows, macOS, and Linux. It starts the renderer dev server, waits until it’s ready on http://localhost:5173, then launches Electron automatically. Closing either process shuts both down.

If you see ERR_CONNECTION_REFUSED, the dev server hasn’t finished starting yet — it will retry automatically.

Desktop Packaging

Native desktop packages are built on each target OS separately. Do not try to package macOS or Linux artifacts on Windows.

Current release target matrix:

The packaged desktop app bundles a platform-specific Node sidecar because the Kuzu-backed worker must run under standard Node.js rather than Electron’s ABI-modified runtime.

Build from the repo root:

pnpm package:desktop:win
pnpm package:desktop:mac
pnpm package:desktop:linux

Generated paths:

Distribution artifacts are written to apps/desktop-host/dist-electron/ by electron-builder, for example:

asar is currently disabled for packaged builds because the external Node worker cannot reliably load its runtime modules from app.asar.
